The span kind describes the role of a span in a distributed trace.

It helps observability tools understand whether a span represents:

• work happening inside a service,

• an incoming request,

• an outgoing request,

• a message being produced,

• or a message being consumed.

Choosing the right span kind makes traces easier to read and helps build accurate service maps, dependency graphs, and latency breakdowns.

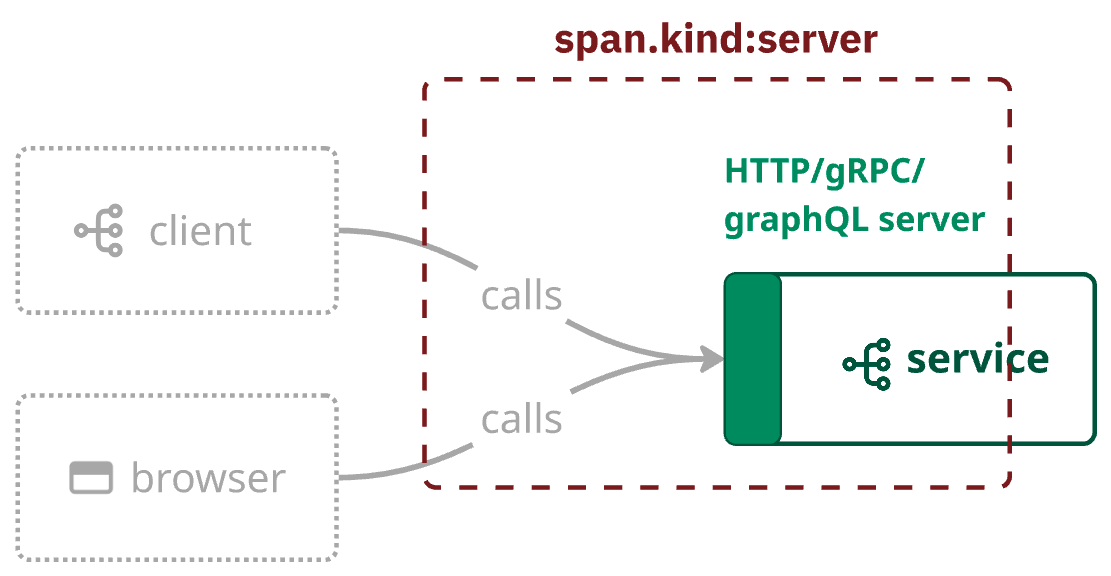

Server

A server span represent the handling of a synchronous inbound request on a service. This means another service, browser, CLI, or external system called this service and is waiting for a response.

Common examples:

• receiving an HTTP request,

• handling a gRPC call,

• processing an incoming RPC request.

A server span often has a corresponding client span on the caller side (if that caller service is instrumented with tracing).

Example

API receives GET /users/123

Span kind:

server

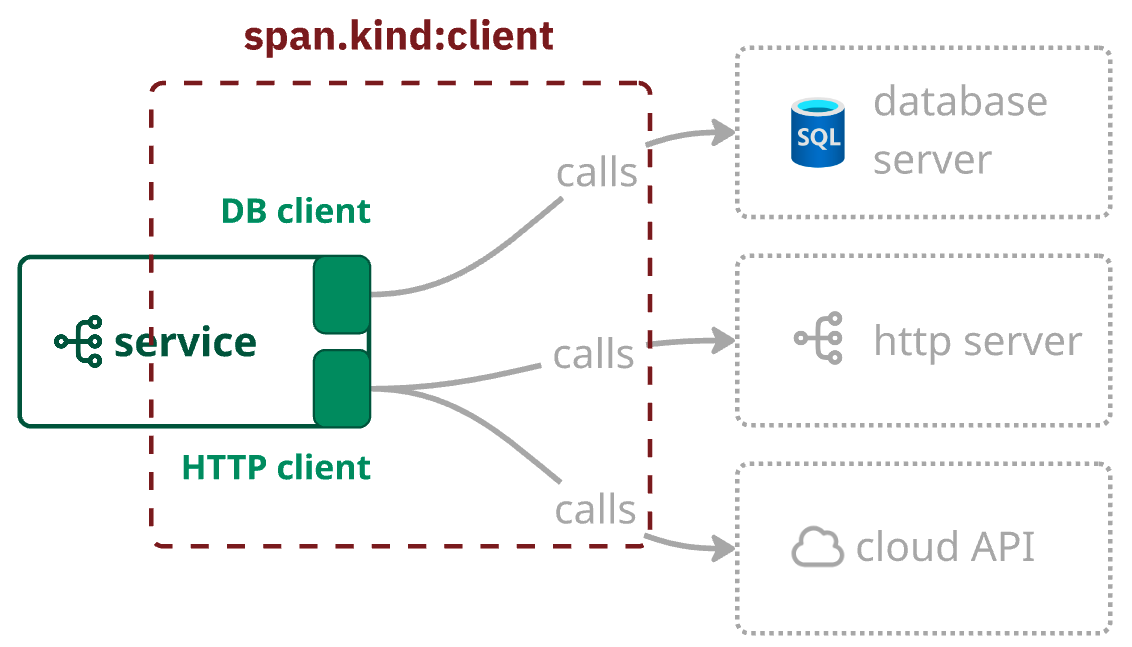

Client

A client span represents an outbound request to another service.

This usually means the current service is calling a remote system and waiting for a response.

Common examples:

• making an HTTP request,

• calling a gRPC service,

• querying a database,

• calling an external API.

A client span often has a corresponding server span on the receiving side (if that callee service is instrumented)

Example

API calls the user-service

Span kind:

client

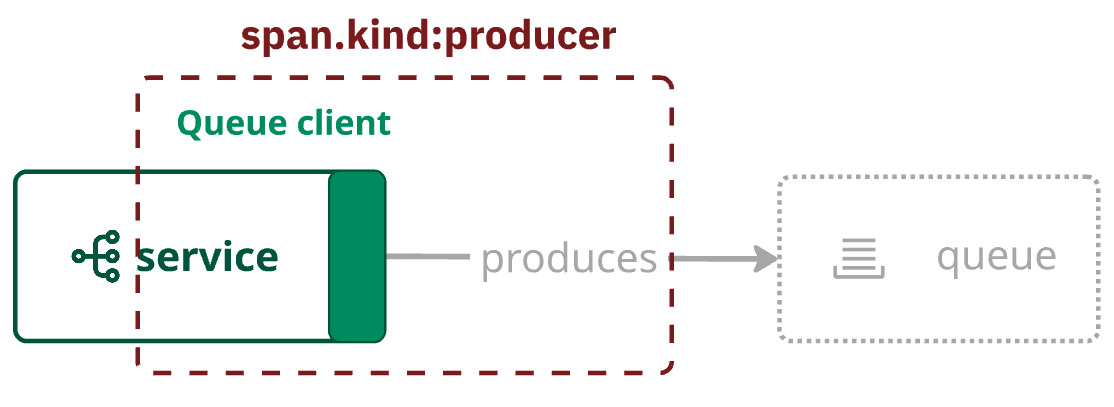

Producer

A producer span represents sending or publishing a message to a broker, queue, topic, or stream.

This is used for asynchronous communication. The producer usually does not wait for the full processing of the message to finish.

Common examples:

• publishing a Kafka message,

• sending a message to RabbitMQ,

• writing an event to a queue,

• pushing a job to a background worker system.

Unlike client and server, producer and consumer spans do not usually represent a direct request/response latency relationship. The producer span may end long before the consumer starts processing the message.

Example

Checkout service publishes OrderCreated

Span kind:

producer

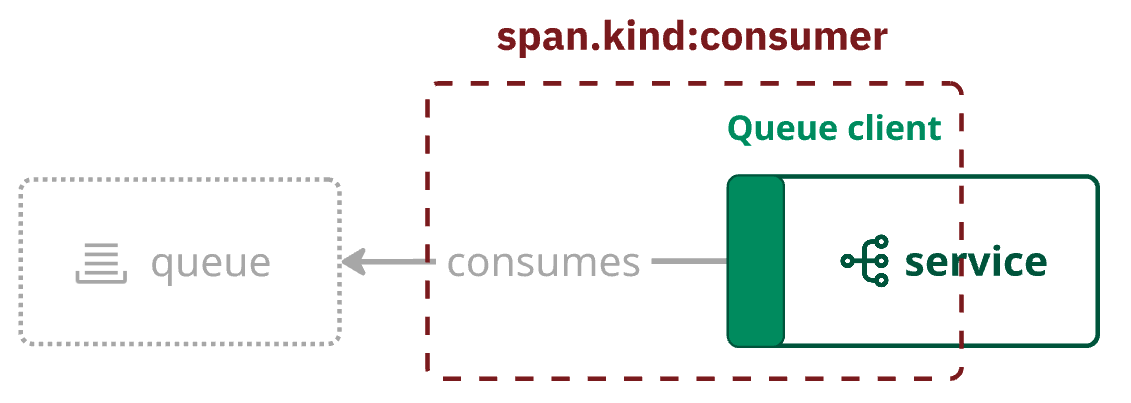

Consumer

A consumer span represents receiving or processing a message from a broker, queue, topic, or stream.

This is the other side of asynchronous communication.

Common examples:

• consuming a Kafka message,

• reading from RabbitMQ,

• processing a queued job,

• handling an event from a stream.

A consumer span is typically related to a previous producer span, but it may happen later and in a different trace shape than a normal synchronous request.

Example

Email service consumes OrderCreated and sends a confirmation email

Span kind:

consumer

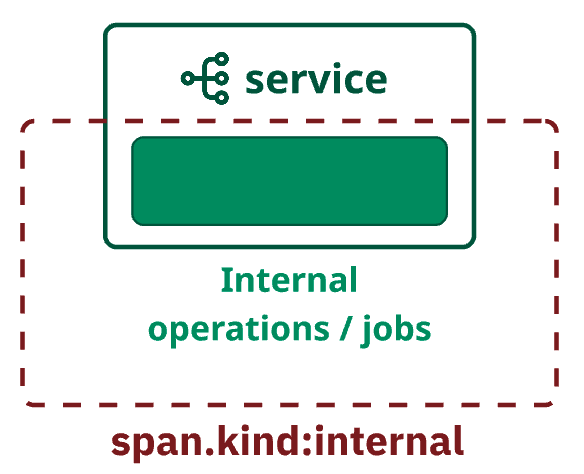

Internal

An internal span represents an operation that does not cross a process boundary. The span represents work happening inside a service, without directly representing communication with another system.

This is the default span kind when no explicit kind is provided.

Common examples:

• validating input,

• rendering a template,

• calculating a price,

• running business logic,

• reading from an in-memory cache,

• executing an internal function.

Use internal for spans that help explain what happened inside a service, but are not themselves incoming requests, outgoing requests, produced messages, or consumed messages.

Example

Calculate cart total

Span kind:

internal
